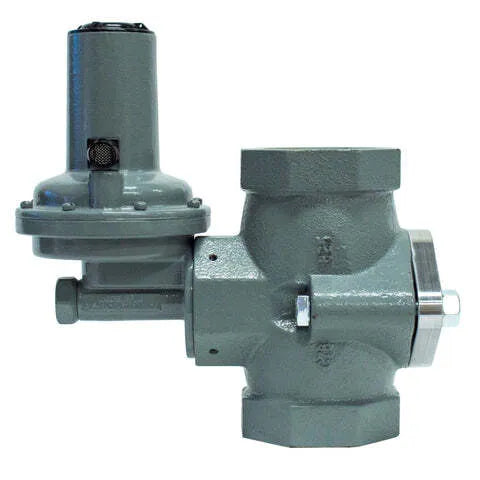

PSX3 Standalone Slam Shut Valve
We stock the PSX3 in 2" NPT with OPSO, UPSO, and all spring ranges. Other connection sizes are available to order — Contact Us to confirm lead time and configure your unit.
The BelGAS PSX3 standalone slam shut valve is built for wherever instantaneous termination of pressure transference is needed. Operating on preset values, the PSX3 automatically stops downstream flow the instant pipeline pressure exceeds the upper set limit or drops below the lower set limit — protecting downstream equipment from overpressure and ensuring gas flow shuts down if pressure drops below what's needed to maintain pilot light or critical flow. Once tripped, the PSX3 requires a manual reset before flow can resume, so the system stays shut down until it's been inspected and confirmed safe.
We carry the PSX3 in OPSO (overpressure shut-off), UPSO (underpressure shut-off), and combined OPSO/UPSO configurations, across all available spring ranges. The valve comes in either internal or external pressure registration, with easy conversion between the two — so one unit can be field-configured to match your application without ordering a different model.
As a standalone slam shut, the PSX3 can be installed independently or paired with a separate regulator to add a dedicated layer of overpressure/underpressure protection anywhere code or good practice calls for it — gate stations, farm taps, and any setup where you want shut-off protection isolated from the regulating function itself.
Features:
- OPSO (overpressure shut-off) and UPSO (underpressure shut-off) protection
- All spring ranges in stock
- Field-convertible between internal and external pressure registration
- Manual reset required after trip — system stays down until inspected
- Molded seat assembly (Nitrile / Aluminum)
- Lead seal and wire available (tamper protection)
- Rebuild kits available
Applications:
- Industrial and commercial gas systems
- Pressure protection for gas engines
- Standalone or paired with service regulators
- Gate stations and farm taps
Product Documentation:
- PSX3 Spec Sheet
- PSX3 Installation & Operation Manual (IOM)
Specifications
| Spec | Detail |
|---|---|
| Model / Series | PSX3 |
| Type | Standalone slam shut valve — OPSO / UPSO |
| Port Size | 2" NPT — in stock. Also available (order-in): 1.25" NPT, 1.5" NPT, 1.5" x 2" NPT, 2" 125FF |
| Connection | NPT or Flanged (125 FF / 150 RF) |
| Registration | Internal or external — field convertible |
| Max Inlet Body Pressure | 25 PSIG |

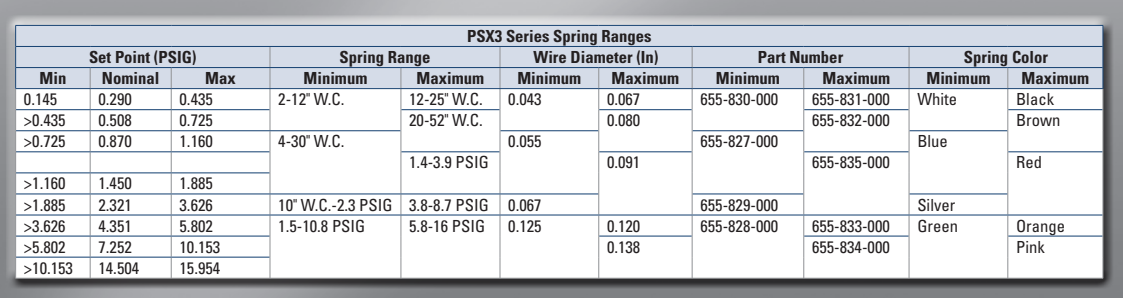

| Spring Ranges | All ranges in stock |
| Orifice Size | 1.188" |
| Vent Connection | 1/4" NPT |
| Sensing Port | 1/4" NPT |
| Seat Material | Molded Seat Assembly — Nitrile and Aluminum |
| Diaphragm | Nitrile |
| Orifice Material | Aluminum |
| Stem Guide | Brass |
| Temperature Range | -20°F to 180°F |
| Weight | 11 lb (NPT versions) / 18 lb (2" 125FF) |
| Application | Pressure Protection, Commercial, Industrial |
| Pilot Operated |
No |
Notes
- The PSX3 is functionally the standalone-valve counterpart to the PSX2 (which is a slam shut regulator built to pair with the P200/P300 series)
