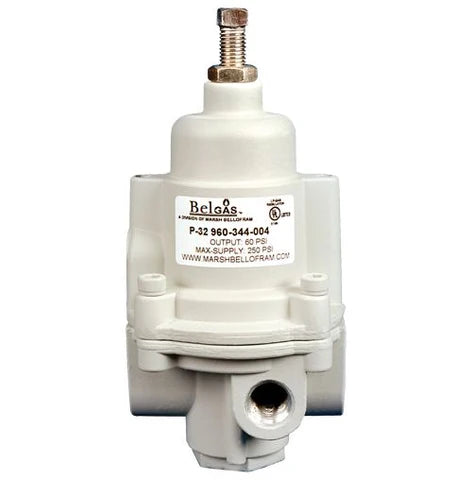

P32 Natural Gas & Propane Regulator

We stock the P32 in 1/4" NPT, 0-30 PSI spring range. Other spring ranges and options are available to order — Contact Us to confirm availability.

The BelGAS P32 natural gas and propane regulator is built for superior regulation and excellent stability in lower-flow applications — the kind of precise, low-volume pressure control that instrument and control systems depend on. A square head adjustment screw allows for easy in-field calibration, and the regulator is also available with an optional handwheel adjustment for tool-free field adjustments.

The P32 is a non-relieving, direct-operated regulator built with a 60-mesh screen to block harmful particles from reaching the internals, and it's UL listed in its standard configuration. NACE-compliant construction is available for sour gas service. Per NFPA 58, use of a separate relief valve is recommended alongside this product.

Features:

• Square head adjustment screw for easy in-field calibration
• Optional handwheel adjustment available
• 60-mesh screen blocks harmful particles
• UL listed (Standard P32)
• NACE construction available
• Non-relieving design
• Optional output pressure gauge and/or mounting bracket

Applications:

• Pneumatic controllers
• Valve positioners
• Actuation
• Fuel gas
• Compressed air

Product Documentation:

• P32 / P36 / P37 / P38 Spec Sheet
• P32 Installation & Operation Manual (IOM)

Specifications
